Just like butter doesn’t magically appear on your toast—it’s the result of multiple steps from cow to dairy to processing—the data you see on your screen also travels through multiple layers before reaching you.
For understanding this complex journey OSI Model was introduced.
What is OSI Model ?
OSI stands for Open System Interconnection. It is networking framework to implement protocols in layers and is used to describe how the data from one device to another in the network. OSI model consists of majorly 7 layers which gives us a rough idea of how the things works in backend.

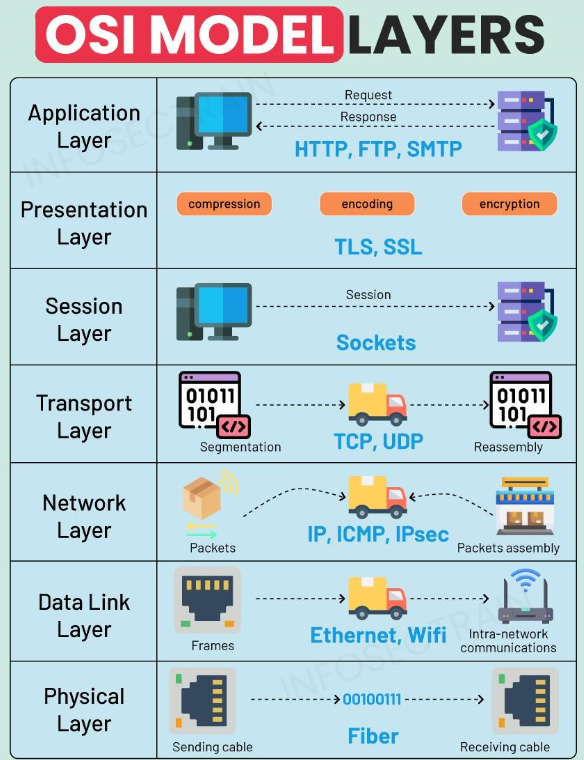

The seven Layers of OSI Model (with analogies )
lets dive into the 7 layers and for better understanding we will use the butter analogy :-

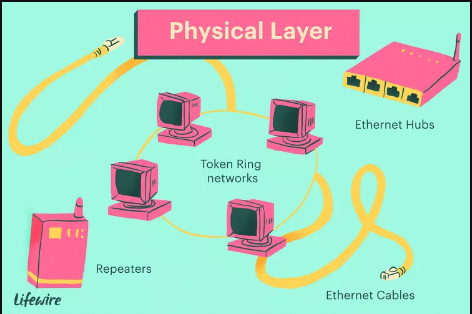

Physical Layer (The Farm)
- This layer deals with the raw transmission of data over cables, wires, and signals—just like the farm is where milk production begins.
:max_bytes(150000):strip_icc():format(webp)/layers-of-the-osi-model-illustrated-818017-finalv1-2-ct-ed94d33e885a41748071ca15289605c9.png)
- Example: Electrical signals, network cables, and wireless radio frequencies.

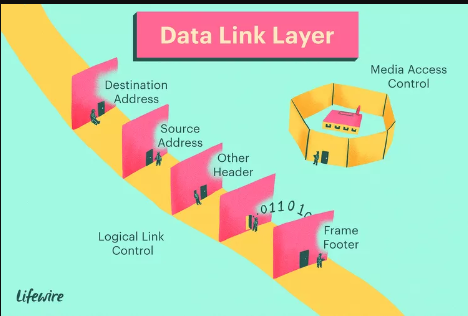

Data Link Layer (The Dairy Factory)
- This layer ensures reliable data transfer between directly connected devices by packaging data into frames—similar to how milk is collected and processed for transport at a dairy.
:max_bytes(150000):strip_icc():format(webp)/layers-of-the-osi-model-illustrated-818017-finalv1-3-ct-9d3e1bf44a554e3db31f706201fc69f6.png)
- Example: MAC addresses and Ethernet protocols.

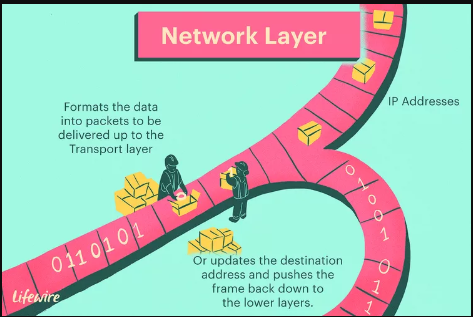

Network Layer (The Distribution Center)
- Responsible for determining the best route for data to travel, like deciding how processed milk products are distributed to different locations.
:max_bytes(150000):strip_icc():format(webp)/layers-of-the-osi-model-illustrated-818017-finalv1-4-ct-9ffde2c7142849819c3fcf5e305a242f.png)
- Example: IP addresses and routing.

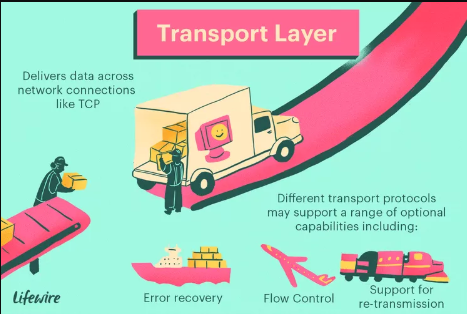

Transport Layer (The Delivery Truck)
- Ensures data is delivered error-free and in sequence, just as a delivery truck ensures milk products arrive safely at stores.
:max_bytes(150000):strip_icc():format(webp)/layers-of-the-osi-model-illustrated-818017-final-5-ct-373fc5a9edc74359819021555f37467d.png)
- Example: TCP (Transmission Control Protocol) and UDP (User Datagram Protocol).

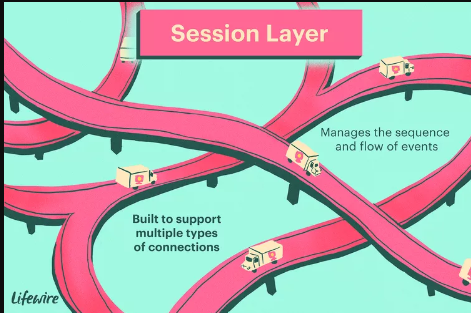

Session Layer (The Store Manager)
- Manages the establishment, maintenance, and termination of communication sessions, like a store manager organizing product placement and ensuring smooth transactions.
:max_bytes(150000):strip_icc():format(webp)/layers-of-the-osi-model-illustrated-818017-finalv1-6-ct-f21bdae22e54415b881d77babe8ca51d.png)
- Example: Remote procedure calls and session management protocols.

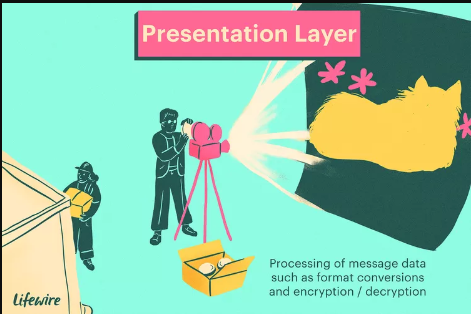

Presentation Layer (The Packaging Department)
- Translates data into a format that the application layer can understand, just as milk products are packaged in bottles, cartons, or tubs for easy consumption.
:max_bytes(150000):strip_icc():format(webp)/layers-of-the-osi-model-illustrated-818017-finalv1-7-ct-e102db1b79da4926b510f944183989f8.png)
- Example: Data encryption, compression, and conversion.

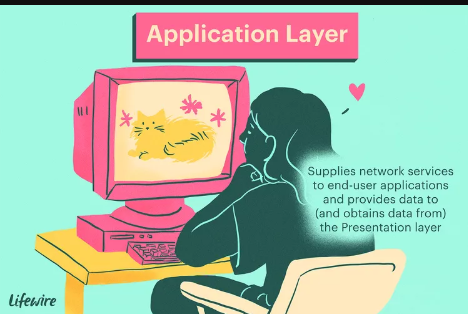

Application Layer (The Customer Experience)
- This layer interacts directly with users, just like the customer enjoying a product at home.
:max_bytes(150000):strip_icc():format(webp)/layers-of-the-osi-model-illustrated-818017-finalv1-8-ct-089b2573bf47462d85f9343f50329f72.png)
- Example: Web browsers, email clients, and file-sharing applications.
How these Layers work Together ?
When you send a message or browse a website, data moves through these seven layers:
The Application Layer prepares the message.
The Presentation Layer formats the data.
The Session Layer establishes a connection.
The Transport Layer ensures reliable delivery.
The Network Layer determines the best route.
The Data Link Layer packages data into frames.
The Physical Layer transmits the data as electrical or optical signals.
Conclusion
The OSI Model is the framework that explains how data journeys from source to destination—making the complex journey of data delivery as smooth as butter.
Understanding the OSI Model helps developers, network engineers, and IT professionals diagnose network issues, design efficient systems, and ensure secure data transmission.
